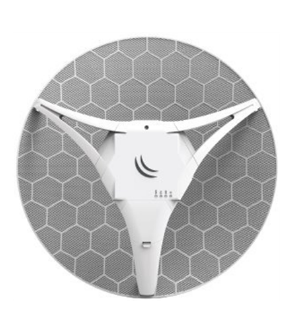

LHG 2G/3G/4G/LTE High gain 17dBI

EM STOCK

The LHG LTE6 kit is a device for very remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any tall structure, and connect even where cell phones fail. Due to its large sized high gain antenna, LHG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

IMP: Preço indicado é NET. Acresce IVA e portes à cobrança

The new LHG LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

 Specifications

Details
Product code                              RBLHGR&R11e-LTE6
Architecture                                MIPSBE
CPU                                              QCA9531
CPU core count                          1
CPU nominal frequency           650 MHz
License level                              3
Size of RAM                               64 MB
Storage size                              16 MB
Storage type                              FLASH
Tested ambient temperature-30°C to 60°C
Powering Details
PoE in                                          802.3af/at
PoE in input Voltage                 12-57 V
Number of DC inputs               1 (PoE-IN)
Max power consumption        6 W

Mobile  Details
2G Category                                Class12
3G Category                                R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
LTE Category                              6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands                          1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) /                                                       8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) /                                                           17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands                          38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz)
2G bands                                    2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G bands                                    1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
Peripherals Details
Number of SIM slots                1 Modem (Mini SIM)
MiniPCI-e slots                          1
